Description

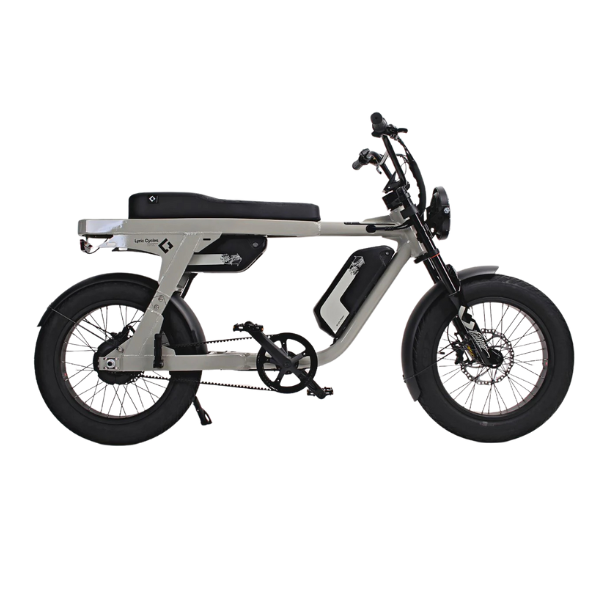

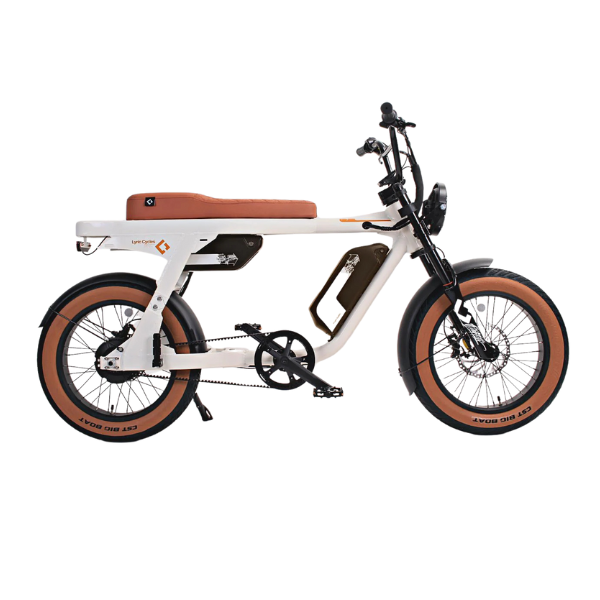

The Lyric Graffiti is not just another electric bike. It was thoughtfully and meticulously designed to harmoniously blend high performance components with modern sustainable technology and eye-catching designs.

For the long leisurely cruises, the Graffiti has the range to go the distance. For the quick commutes, the Graffiti will get you there fast. Two’s company? The Graffiti will comfortably accommodate you both.

Plus, this eco and wallet-friendly electric bike is remarkably low maintenance.

STOCK POWER (CLASS 2 USA)
750W (1000W peak)
Top Speed Regulated: 20mph
1000W (2300W peak)
Top Speed Unlimited: 28+mph

*NOTE: Speed regulated to 20mph as a legal class 2 electric bicycle in the USA.

STOCK POWER (CANADIAN)
Legal Mode: 500W (1000W peak)
Top Speed Regulated: 32 km/h
1000W (2300W peak)
Top Speed Unlimited: 33+mph

*NOTE: Speed regulated to 32kmh as a legal electric bicycle in Canada.

RANGE
Single Battery: 35-40+ miles per charge*
Dual Battery: 70-80+ miles per charge*

*Range formula used: 25-30 Wh per mile for a 175lb rider at 15-20 mph with pedal assist

BATTERY
52V, 17.5ah (910 Wh) with 21700 Samsung 50E cells, rated for 1000 charge cycles
Optional Dual Battery 52V 2 x 17.5ah

CONTROLLER
52V, 33 amp controller

DISPLAY
APT 860c Display.

CHARGER
52V, 3 Amp with intelli-charger, 110v

PEDAL ASSIST
Configurable 5-9 level pedal assist with sealed 12 magnet cadence sensor

THROTTLE
Right side full twist throttle with throttle cancel button

LIGHTS
6000 lumen 7” DOT Motorcycle headlight
Integrated Tail and brake light
Turn signals not included

WIRING
IP54 rated, Internally run, water resistant connectors and wiring harness

*FREE ASSEMBLY
